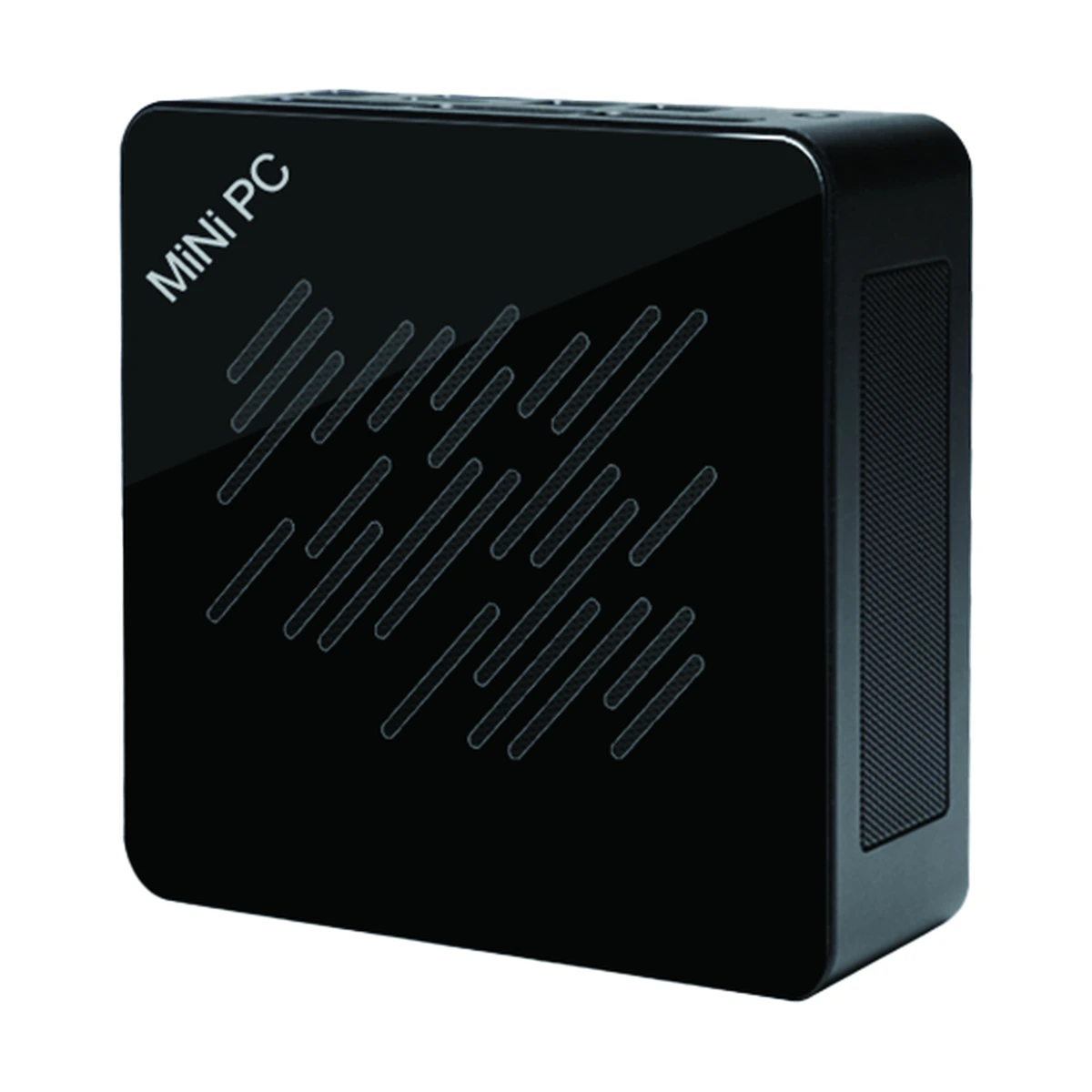

MC15UH
Intel Core Ultra performance with USB4, OCuLink, and dual 2.5GbE
MC15UH is a compact commercial mini PC based on the Intel Arrow Lake-H platform. It combines Intel Core Ultra processing and Intel Arc 140T graphics with dual DDR5 memory slots, two NVMe storage slots, dual 2.5GbE LAN, USB4, and OCuLink connectivity.
Product Gallery
A closer look at MC15UH
Different product views highlight the enclosure design, interface layout, and installation details.

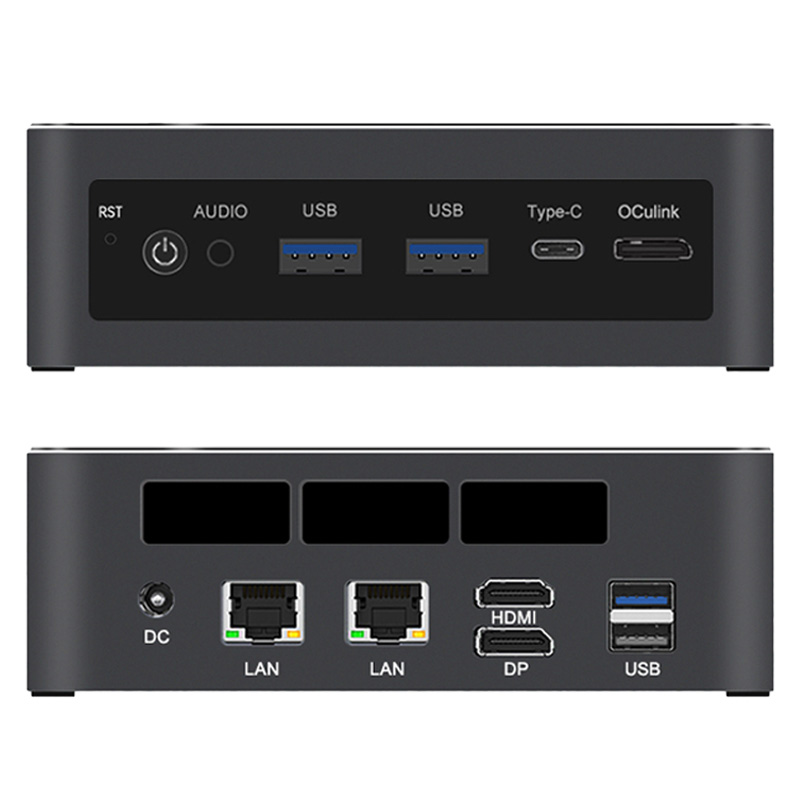

Front and rear connectivity
Front USB, USB4, audio, reset, and OCuLink connections are paired with dual 2.5GbE LAN, HDMI, DisplayPort, USB, and DC input on the rear panel.

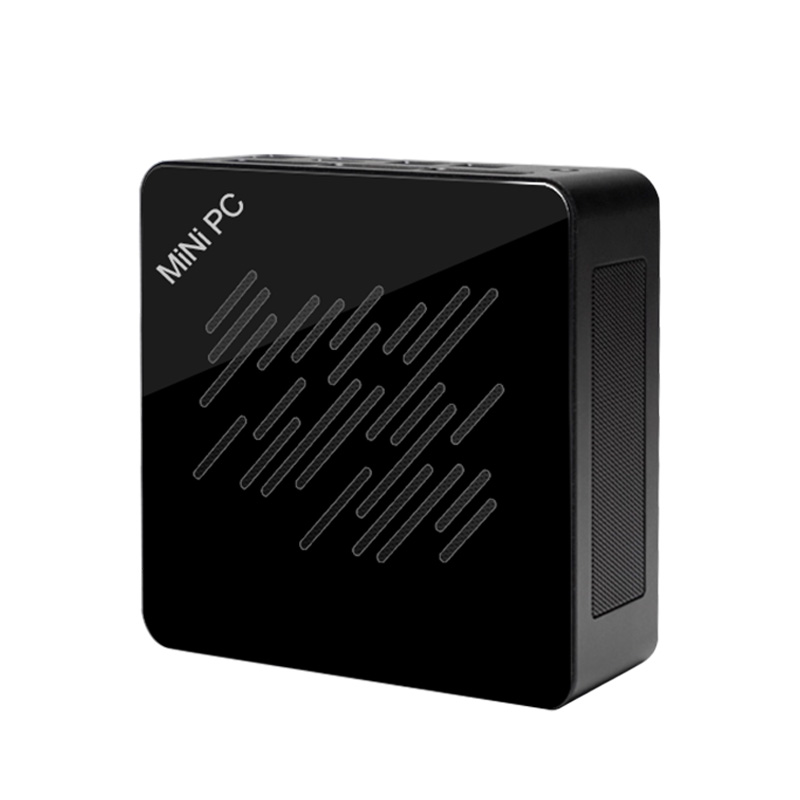

Compact ventilated enclosure
The compact chassis uses ventilated side panels and a top intake pattern as part of its cooling design.
Intel Core Ultra platform
The Arrow Lake-H platform combines Intel Core Ultra processing with integrated Intel Arc 140T graphics.
Technical Specifications
Industrial-grade configuration details
MC15UH Specification Matrix
Brochure-based hardware parameters
Operating Range
0°C to 50°C
Model
MC15UH
CPU
Intel Core Ultra 7 255H or Intel Core Ultra 9 285H processor
Platform
Intel Arrow Lake-H
Graphics
Intel Arc 140T Graphics
Memory
2 x SO-DIMM DDR5-5600 slots, supporting up to 128GB
Storage
2 x M.2 2280 NVMe SSD slots
Display
1 x HDMI (up to 8K@60Hz / 4K@120Hz), 1 x DisplayPort (up to 8K@60Hz / 4K@160Hz), and display output through USB4 (up to 4K@120Hz)
Network
2 x Intel i226-V 2.5GbE LAN
Wireless
Wi-Fi 6E and Bluetooth 5.3

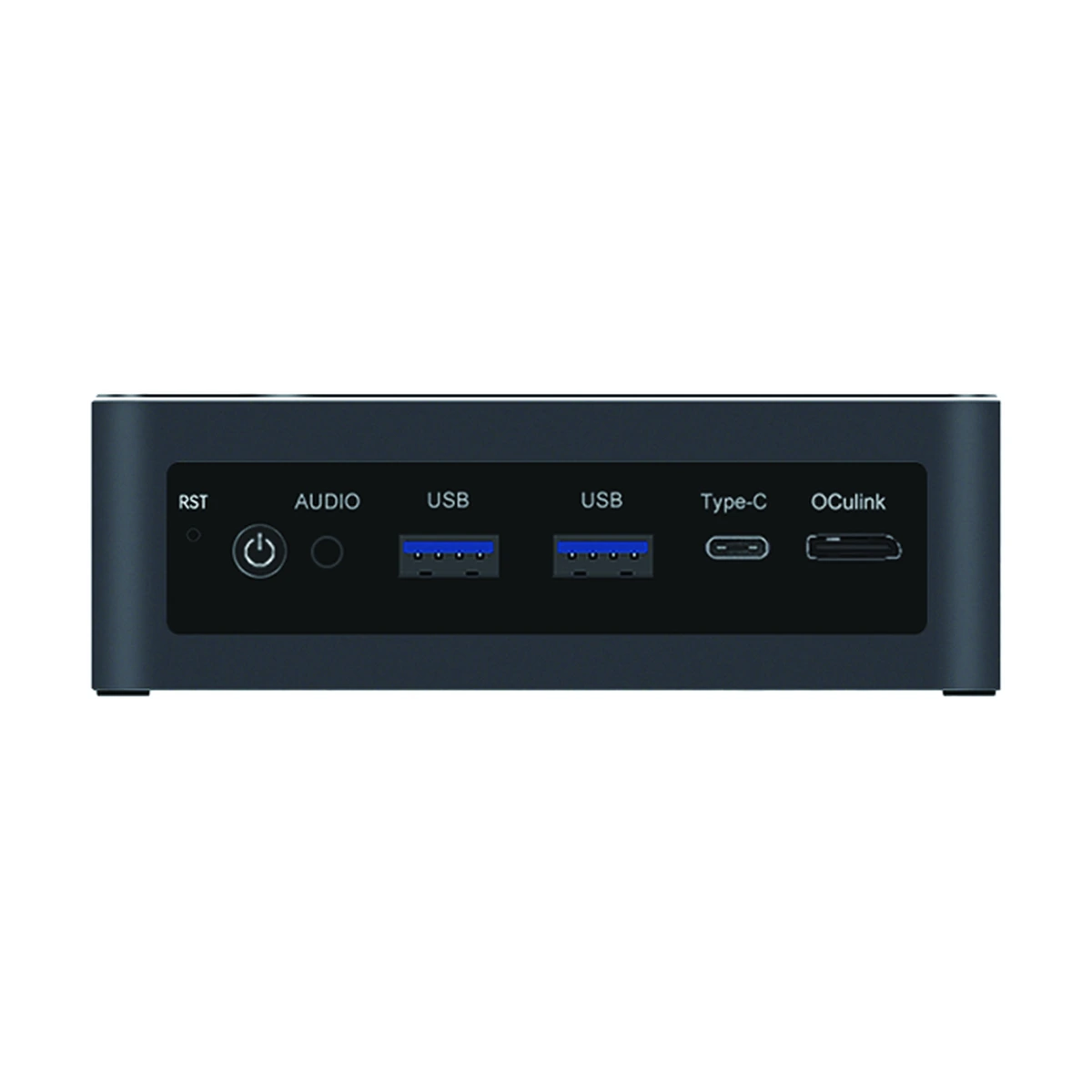

Front I/O
1 x power button, 1 x reset hole, 1 x 3.5 mm combined audio jack, 2 x USB 3.0, 1 x USB4 40Gbps, and 1 x OCuLink connector for an external graphics expansion dock

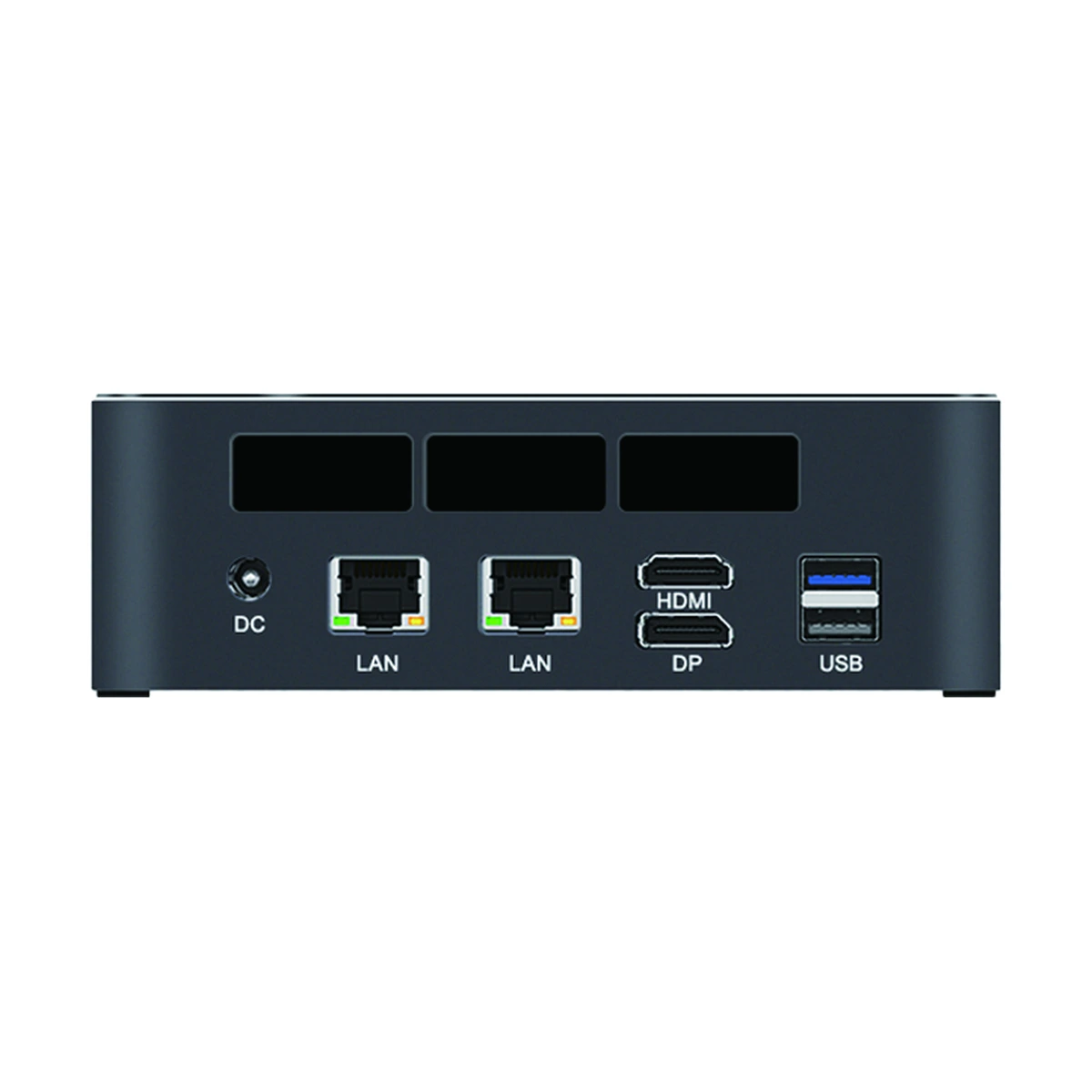

Rear I/O
1 x DC input, 2 x 2.5GbE LAN, 1 x HDMI 2.1, 1 x DisplayPort 2.1, and 2 x USB 3.0
Power
19V / 6.32A, 120W
BIOS
AMI BIOS, Legacy or UEFI
System
Windows 10 or Windows 11
Working Environment
0°C to 50°C; 5%-90% relative humidity, non-condensing
Dimensions
132 x 132 x 50.5 mm
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MC15UH brings an Intel Core Ultra platform, up to 128GB DDR5 memory, dual NVMe storage, dual 2.5GbE networking, and external expansion through USB4 and OCuLink into a 132 mm square chassis.
Intel Core Ultra Platform
Arrow Lake-H Core Ultra 7 255H and Core Ultra 9 285H processor options are paired with Intel Arc 140T graphics.
USB4 and OCuLink
USB4 40Gbps supports display output, while OCuLink provides a connection for an external graphics expansion dock.
Dual 2.5GbE Networking
Two Intel i226-V 2.5GbE ports provide separate high-speed wired network connections.

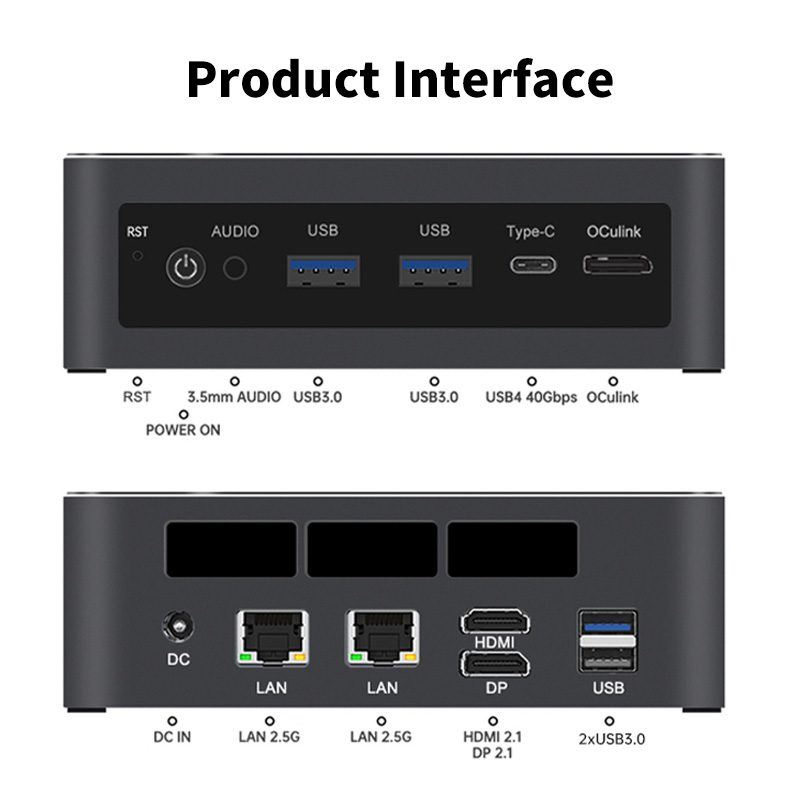

Clearly labeled interface layout
The panel overview identifies every front and rear connection, including USB4, OCuLink, dual 2.5GbE LAN, HDMI, and DisplayPort.

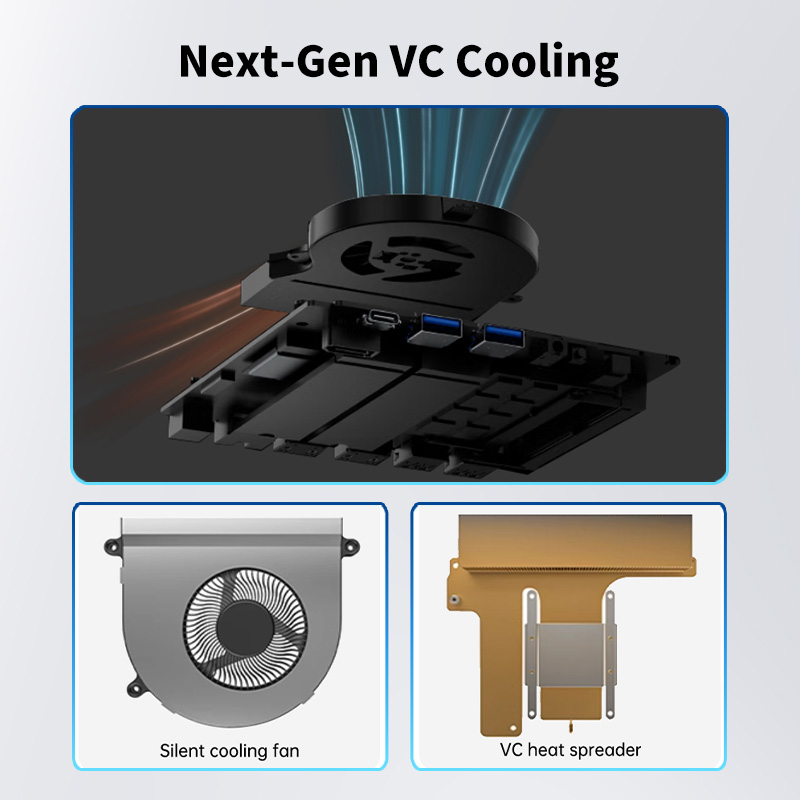

VC cooling structure
The cooling assembly combines a fan with a VC heat spreader in the compact enclosure.
