MCR20
Fanless Alder Lake-N network appliance with dual 10GbE and dual 2.5GbE
MCR20 is a compact network security and edge appliance built for high-throughput routing, firewall, VPN, and gateway deployments. It combines Intel Alder Lake-N processors with dual Intel 2.5GbE, dual 10GbE copper or SFP+ networking, DDR5 memory, flexible storage, and a rugged aluminum enclosure.
Product Gallery
A closer look at MCR20
Different product views highlight the enclosure design, interface layout, and installation details.

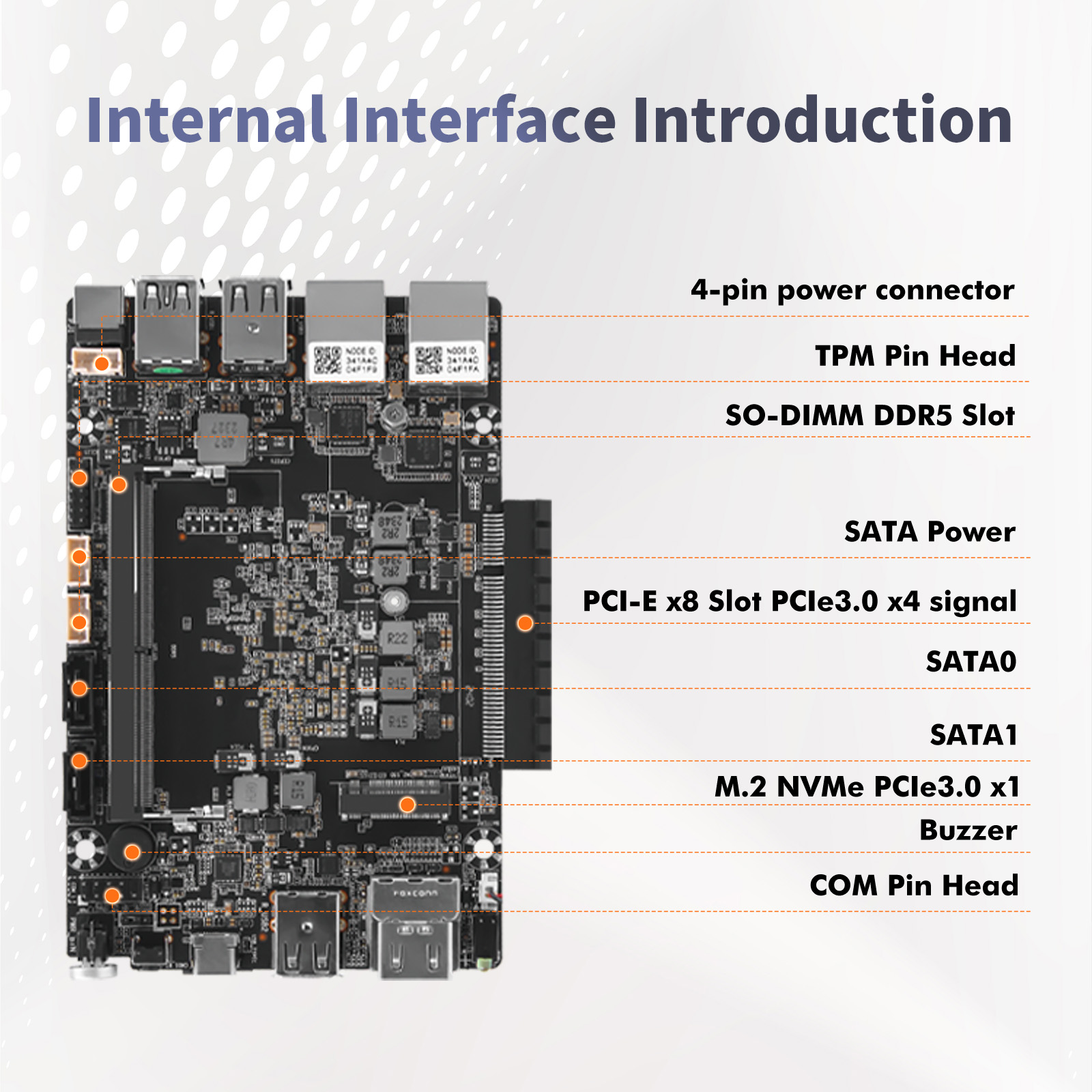

Clearly labeled internal expansion
The motherboard layout identifies DDR5 memory, M.2 NVMe, dual SATA, PCIe expansion, TPM, COM, power, and service connections for straightforward configuration.

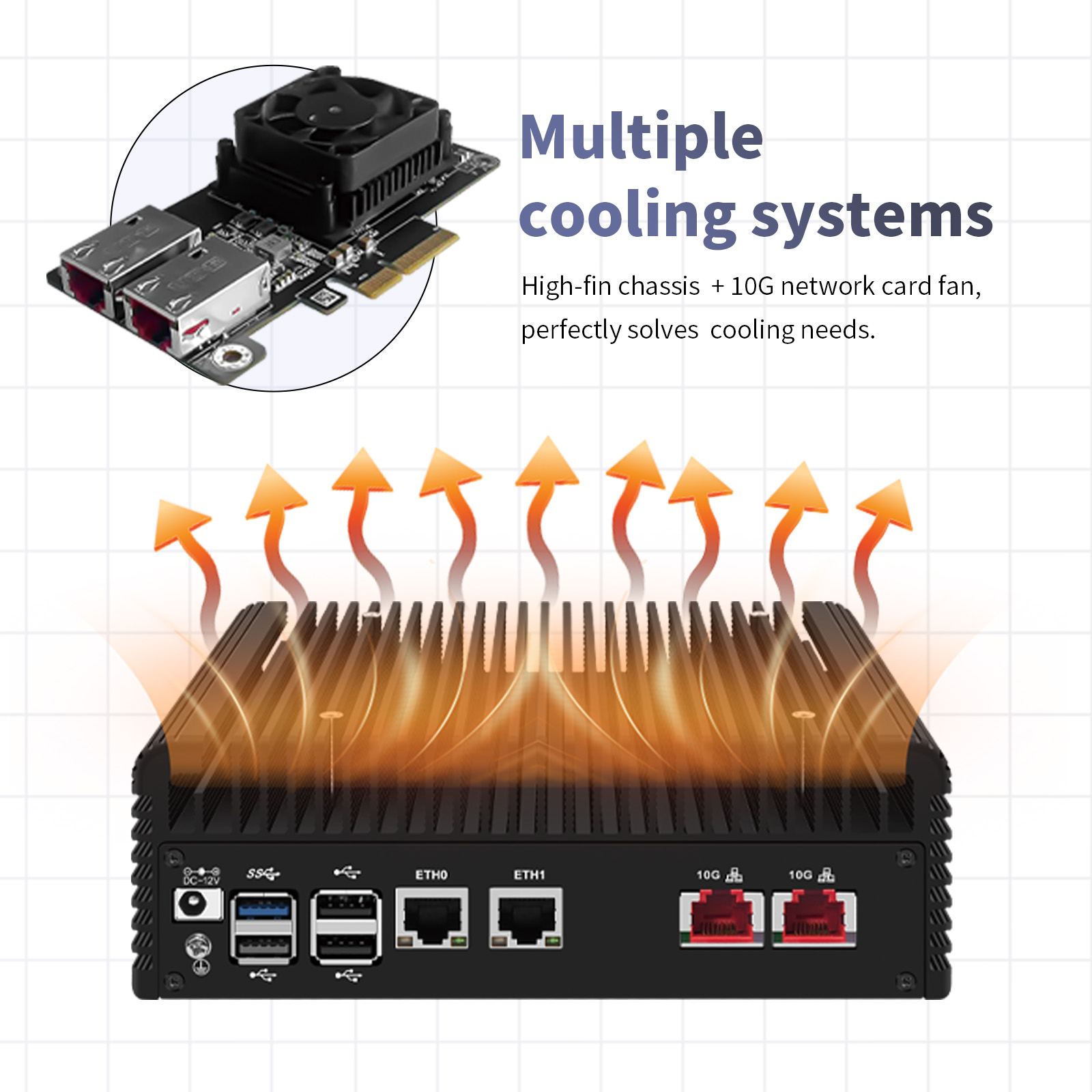

Purpose-built thermal design
The high-fin aluminum chassis dissipates processor heat while a dedicated 10G network-card fan manages the higher thermal load of multi-gigabit networking.
Technical Specifications
Industrial-grade configuration details
MCR20 Specification Matrix
Brochure-based hardware parameters
Operating Range
0°C to 70°C
Model
MCR20
CPU
Intel Alder Lake-N N95, N97, N100, N200, Core i3-N300, or Core i3-N305
Chipset
Intel Alder Lake-N
Graphics
Intel UHD Graphics
Video
2 x HDMI 2.0 and 1 x Type-C, supporting 4K at 60Hz
Memory
1 x SO-DIMM DDR5-4800 slot with DDR5-5200/5600 support, maximum 48GB
Material
Aluminum alloy
USB
5 x USB 2.0, 1 x USB 3.2 Gen 1 (5Gbps), and 1 x Type-C USB 2.0
Power
12V DC; 5A for N100-N200 configurations or 8A for Core i3-N300/N305 configurations
Network
2 x Intel i226-V 2.5GbE RJ45 plus 2 x Intel X550-T2 10GbE RJ45 or 2 x Intel 82599ES SFP+
Storage
1 x M.2 2280 NVMe PCIe 3.0 x1 and 2 x SATA 3.0 6Gbps
Expansion
1 x TF card slot, 1 x COM header, and 1 x TPM header
Front I/O
Power button, Clear CMOS, 2 x WiFi antenna holes, TF slot, Type-C, USB 2.0, 2 x HDMI 2.0, power indicator, and storage indicator
Rear I/O
12V DC input, grounding screw, USB 3.2 Gen 1, 3 x USB 2.0, 2 x 2.5GbE RJ45, and either 2 x 10GbE RJ45 or 2 x SFP+
Internal I/O
4-pin power, TPM, SATA power, 2 x SATA, PCIe x8 slot with PCIe 3.0 x4 signal, M.2 NVMe PCIe 3.0 x1, DDR5 SO-DIMM, buzzer, and COM
Dimensions
176.7 x 143.7 x 58.2 mm
TDP
6W or 15W depending on processor
System
Windows 10, Windows 11, and Linux
Working Environment
0°C to 70°C; 5%-85% relative humidity, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCR20 combines compact fanless edge computing with enterprise-oriented network bandwidth: dual 2.5GbE, optional dual 10GbE copper or SFP+, DDR5 memory, flexible storage, triple-display output, and broad internal expansion in one rugged appliance.
Multi-Gigabit Network Platform
Dual Intel 2.5GbE plus dual 10GbE copper or SFP+ interfaces support high-throughput routing, firewall, and network segmentation.
Flexible Alder Lake-N Performance
Processor options from N95 through Core i3-N305 let projects balance compute performance, power use, and deployment cost.
Expandable Storage and I/O
M.2 NVMe, dual SATA, DDR5 memory, TPM, COM, TF card, and PCIe expansion provide a flexible platform for edge applications.

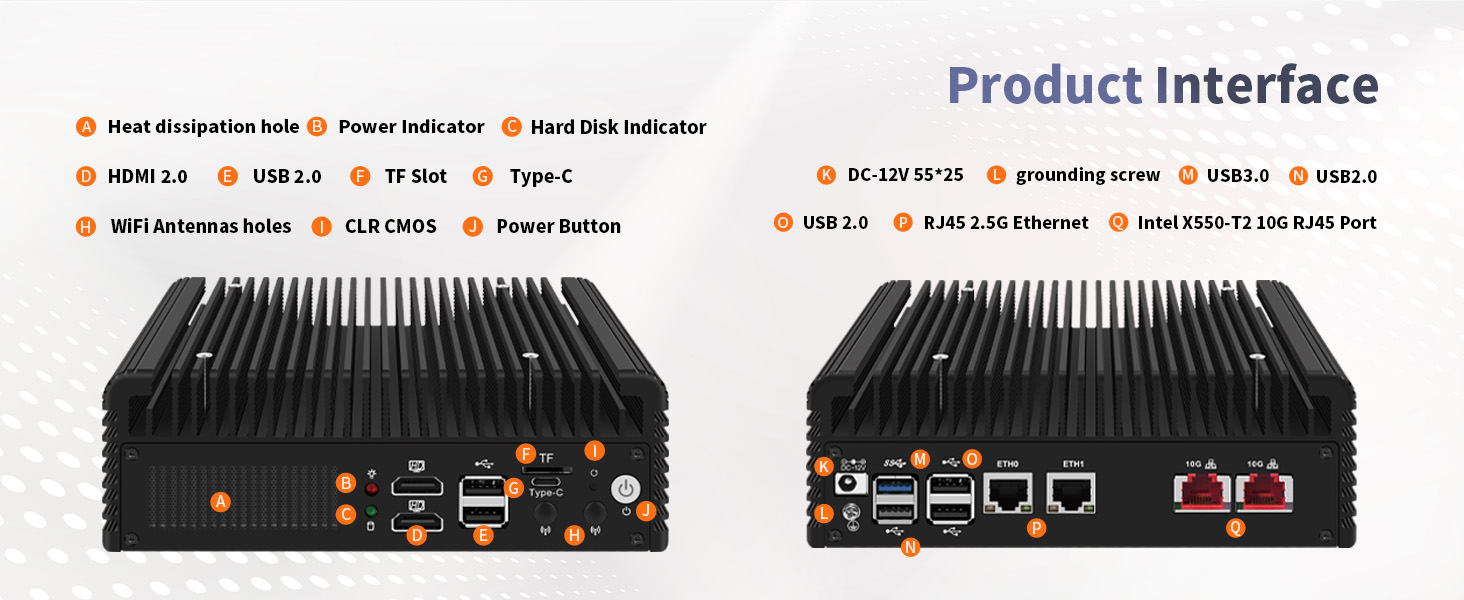

Complete front and rear interface map
The labeled panel overview shows display, USB, TF, Type-C, control, status, power, dual 2.5GbE, and dual 10GbE connections at a glance.

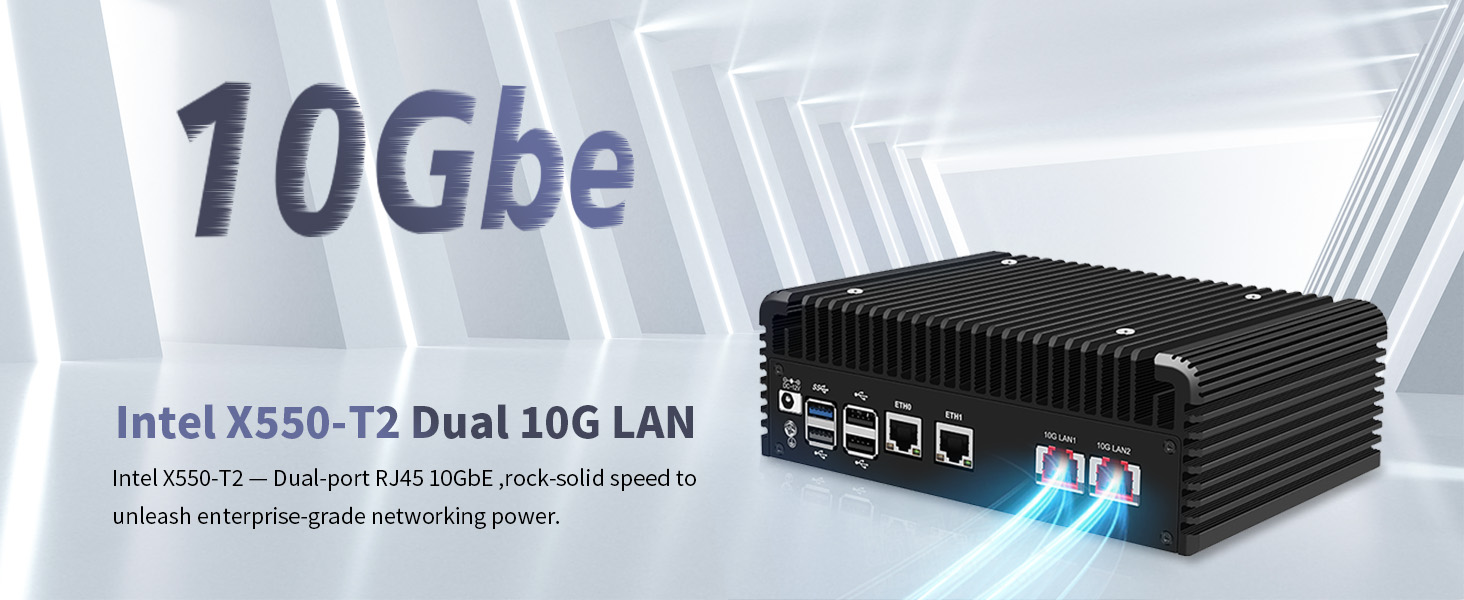

Dual Intel 10GbE connectivity
Two Intel X550-T2 10GbE copper ports deliver high-throughput connectivity, with an Intel 82599ES dual-SFP+ configuration available as an alternative.
