MCIPCB12
Compact fanless industrial mini PC with rich I/O and triple-display support
MCIPCB12 is a compact industrial mini PC designed for automation, digital signage, embedded gateways, and machine-side control. It combines efficient Intel Elkhart Lake or Alder Lake-N processors with dual Gigabit LAN, dual RS232, flexible storage, and triple-display output.
Product Gallery

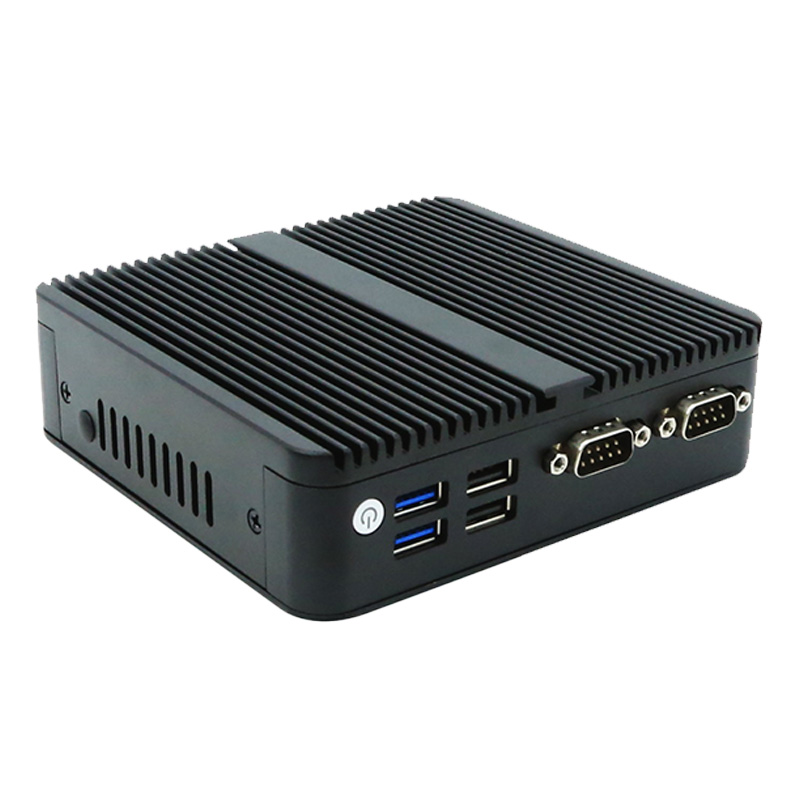

A closer look at MCIPCB12
Different product views highlight the enclosure design, interface layout, and installation details.
Technical Specifications
Industrial-grade configuration details
MCIPCB12 Specification Matrix
Brochure-based hardware parameters
Operating Range
-20°C to +60°C
Model
MCIPCB12
CPU
Intel Elkhart Lake J6412/J6413/J6426; Intel Alder Lake-N N95/N100/N200/N300
Video
2 x HDMI 1.4, 1 x DP 1.2
Graphics
Intel UHD Graphics
RAM
1 x DDR4 SO-DIMM slot, maximum 16GB
USB
2 x USB 3.0, 2 x USB 2.0
Power Input
DC 12V
NIC
2 x Realtek RTL8111H Gigabit LAN
COM
2 x DB9 RS232 COM
Storage
1 x M.2 2280 NVMe, 1 x SATA 3.0, 1 x mSATA 3.0
Expansion
1 x M.2 2230 supporting WiFi and Bluetooth; watchdog; network wake-up / PXE
Front I/O
2 x USB 3.0, 2 x USB 2.0, 2 x DB9 RS232 COM, 1 x power button

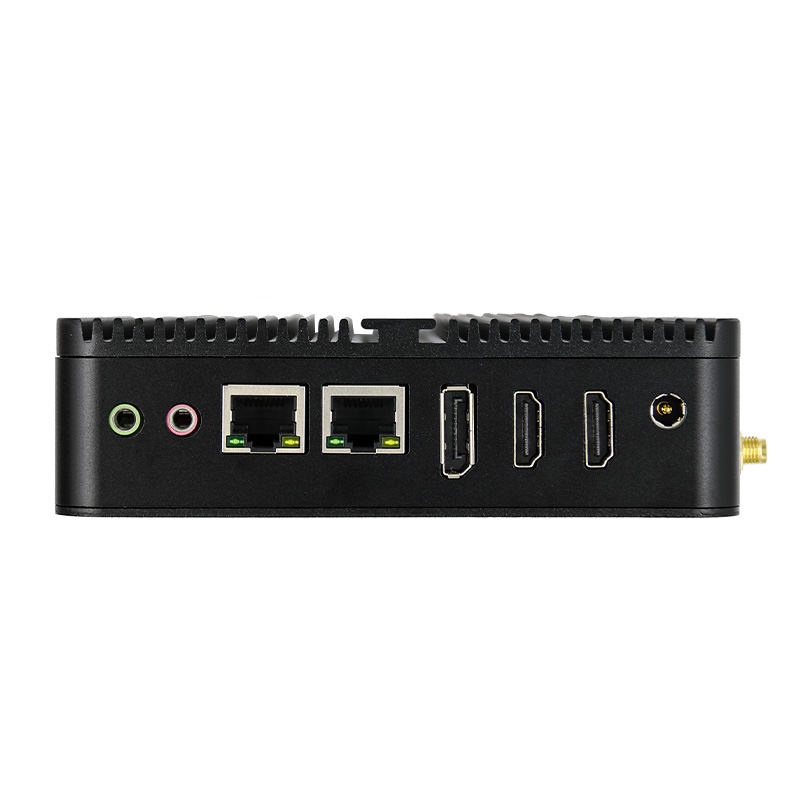

Rear I/O
2 x RJ45 Gigabit LAN, 1 x DC 12V, 2 x HDMI 1.4, 1 x DP 1.2, 1 x microphone, 1 x speaker
Internal I/O
1 x SATA 3.0 slot, 1 x M.2 SSD slot, 1 x mSATA 3.0 slot, 1 x DDR4 SO-DIMM slot, 1 x M.2 2230 slot, 1 x CMOS battery
BIOS
AMI UEFI BIOS
System
Windows 10, WES 10, Linux
Working Environment
Working temperature: -20°C to +60°C; storage temperature: -30°C to +70°C; relative humidity: 10%-90%, non-condensing
Size
135 x 127 x 38.7 mm
Weight
Net 0.8 kg; gross 1 kg
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCB12 balances compact dimensions with practical industrial connectivity, flexible storage, triple-display output, and efficient processor options for reliable embedded and edge deployments.
Triple Display Output
Dual HDMI and DisplayPort outputs support information displays and multi-screen workstations.
Industrial Connectivity
Dual Gigabit LAN, dual RS232, and four USB ports connect controllers, sensors, and peripherals.
Flexible Storage
M.2 NVMe, SATA 3.0, and mSATA storage options simplify deployment and expansion.

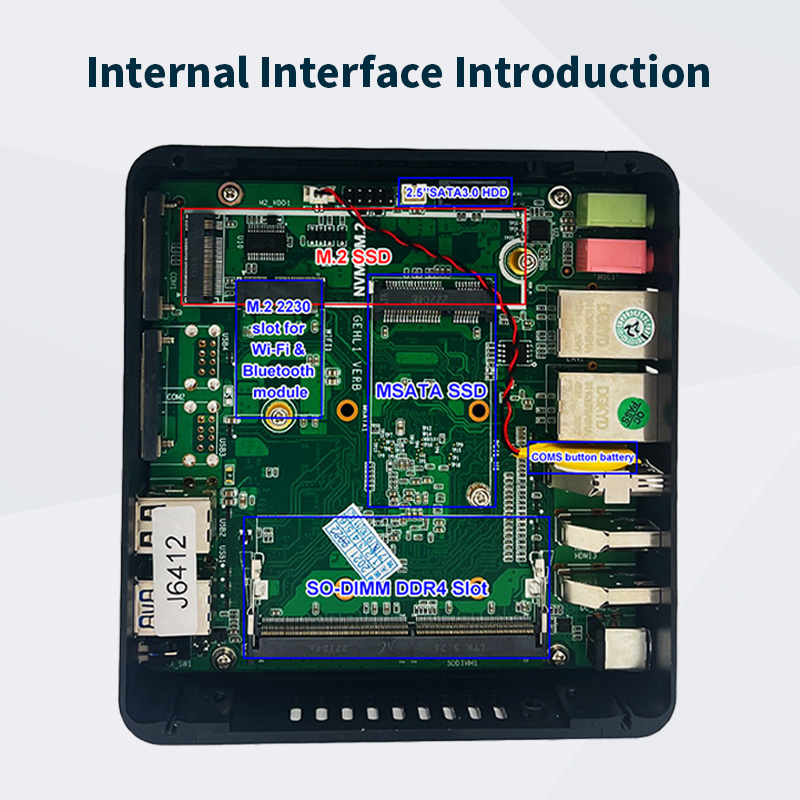

Clearly labeled internal expansion
The internal layout identifies DDR4 memory, M.2 WiFi, mSATA, M.2 NVMe, SATA, speaker, CMOS, and front-panel connections for easier configuration and servicing.

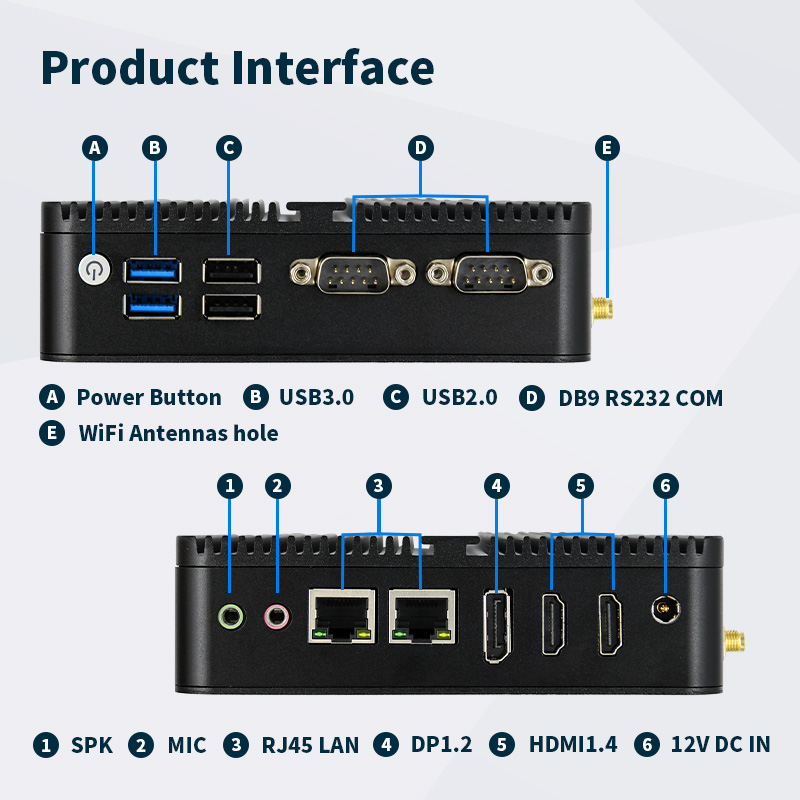

Complete front and rear interface map
The panel guide shows four USB ports, dual DB9 RS232, dual Gigabit LAN, dual HDMI, DisplayPort, audio, WiFi antenna, and 12V DC input.
Versatile industrial and commercial applications
Designed for intelligent forklifts, CNC machines, automation, self-service payment equipment, kiosks, and digital signage.
Broad operating system support
Compatible with Ubuntu, Windows, and Linux environments for flexible software deployment and system integration.
