MCIPCB13
Industrial Mini PC for dependable multi-I/O edge deployment
MCIPCB13 is a compact industrial box PC built for automation, machine control, embedded gateway, and factory workstation scenarios. It combines broad Intel Core platform compatibility with dual LAN, rich USB and COM connectivity, wide voltage input, and a rugged operating temperature range.
Product Gallery

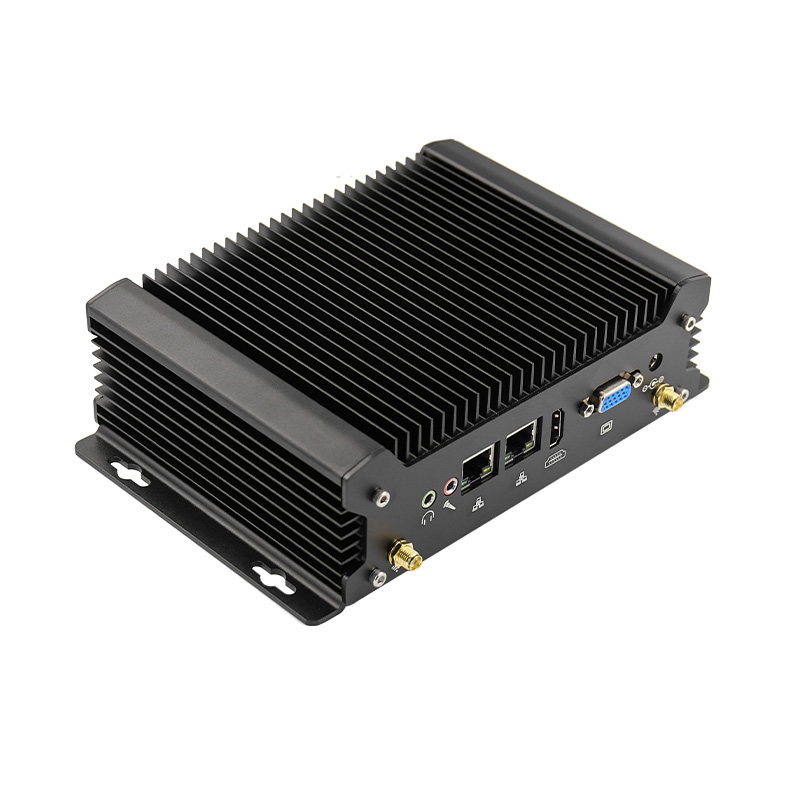

A closer look at MCIPCB13
Different product views highlight the enclosure design, interface layout, and installation details.
Technical Specifications
Industrial-grade configuration details
MCIPCB13 Specification Matrix
Brochure-based hardware parameters
Operating Range
-20°C to +60°C
Model
MCIPCB13
CPU
Optional Intel 4th/5th/6th/7th/8th/10th Gen Core i3/i5/i7 CPU
Video
1 x HDMI, 1 x VGA (or HDMI)
RAM
4th Gen: 1 x DDR3L SODIMM, up to 8GB; 6th/7th/8th Gen: 1 x DDR4 SODIMM, up to 16GB; 8th/10th Gen: 2 x DDR4 SODIMM, up to 32GB; 12th/13th Gen: 1 x DDR5 SODIMM, up to 64GB
USB
4 x USB 3.0, 4 x USB 2.0
Power Input
DC 12V-19V power input
NIC
2 x GbE RJ45 Realtek 8111H
COM
2 x DB9 COM
Storage
4th Gen: 1 x mSATA; 6th/7th/8th/10th/12th/13th Gen: 1 x M.2 2280 supporting SATA and NVMe; 1 x 2.5-inch HDD/SSD
Expansion
1 x Mini-PCIe half/full card with SIM slot, supports 3G/4G, WiFi/Bluetooth; supports watchdog and diskless boot
Front I/O

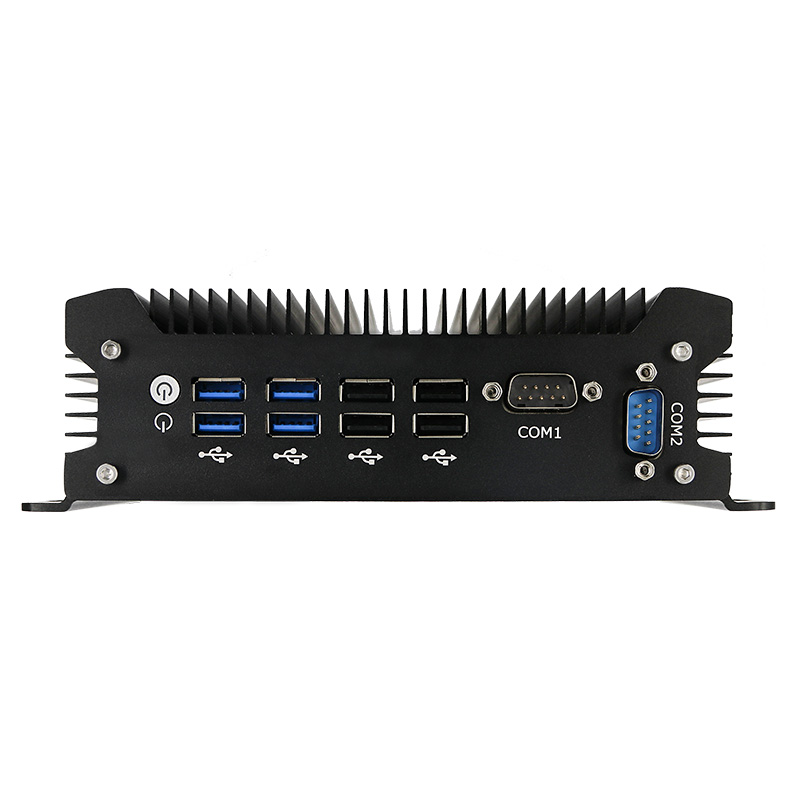

1 x Power button, 4 x USB 3.0, 4 x USB 2.0, 2 x DB9 COM (COM1, COM2)
Rear I/O

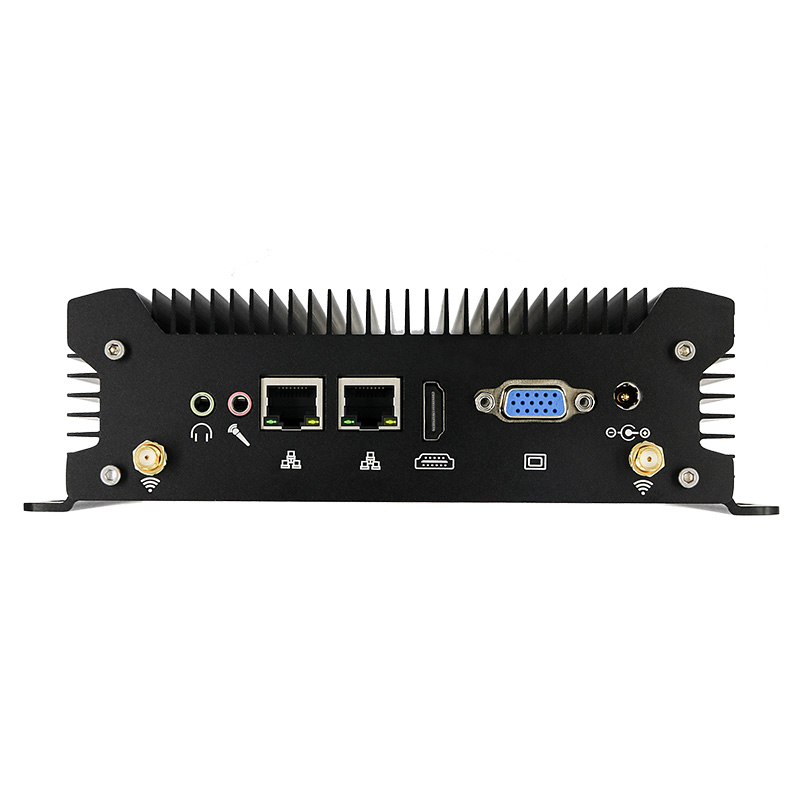

1 x DC power input, 2 x GbE RJ45 LAN, 1 x HDMI, 1 x VGA, 1 x earphone jack, 1 x microphone, 2 x antenna connectors for WiFi/3G/4G
System
Windows 7/8/10, WES 7/10, Linux
Working Environment
Working temperature: -20°C to +60°C; storage temperature: -30°C to +70°C; storage humidity: 10%-90% @30°C, non-condensing
Size
193.9 x 127 x 57.2 mm
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCB13 focuses on the interfaces and durability industrial buyers usually need first: broad CPU options, legacy and modern I/O, resilient environmental ratings, and flexible storage expansion in a compact enclosure.
Flexible Intel Core Platform
Covers multiple Intel Core generations so projects can balance cost, lifecycle, and performance.
Industrial Connectivity
Dual Gigabit LAN, dual DB9 COM, and eight USB ports support controllers, sensors, cameras, and peripherals.
Wide Temperature Operation
Designed for -20°C to +60°C operation in demanding industrial and edge environments.

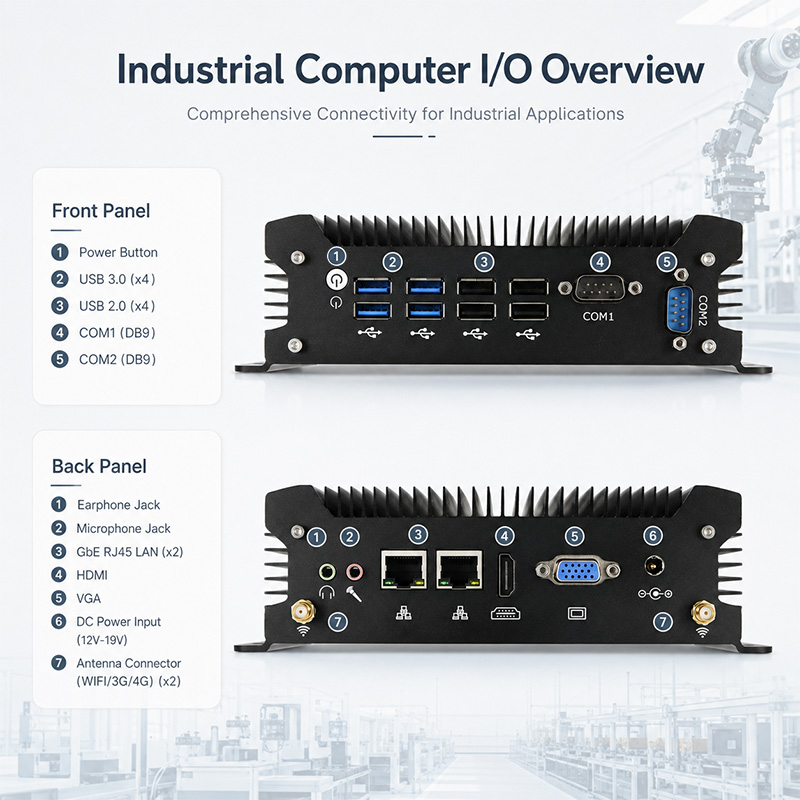

Front and rear I/O at a glance
The illustrated panel map identifies the power button, eight USB ports, dual COM, audio, dual Gigabit LAN, dual display outputs, DC input, and antenna connections.

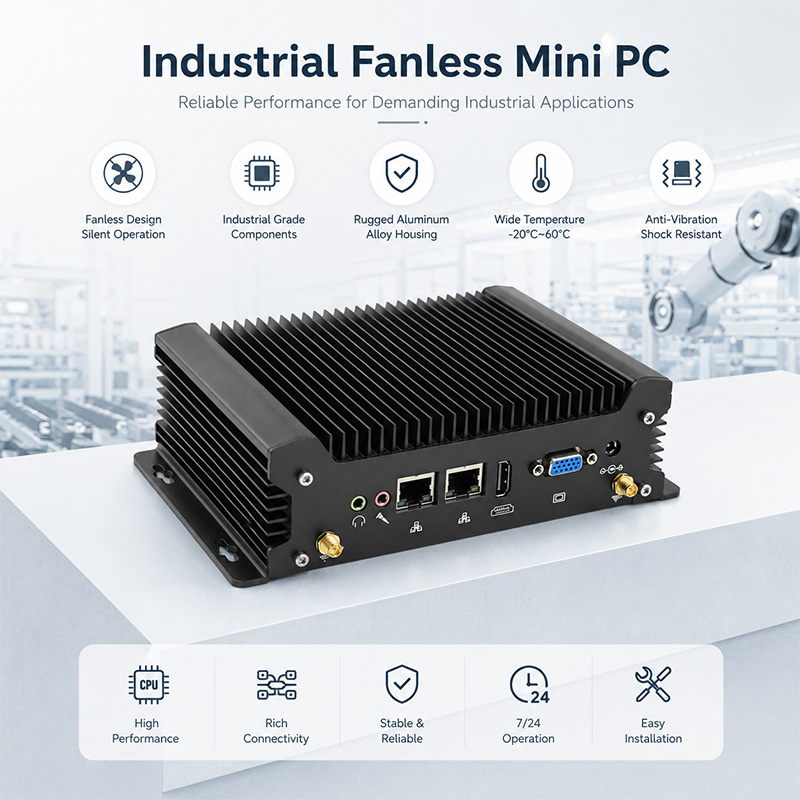

Fanless reliability for industrial workloads
A fanless aluminum enclosure, wide-temperature support, dual-display capability, wireless expansion, and 24/7 operation suit demanding automation and edge deployments.
Interested in MCIPCB13?
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
