MCIPCD3
Six-LAN industrial network appliance with flexible Intel Core platform support
MCIPCD3 is a rugged industrial network appliance designed for routing, firewall, gateway, and edge connectivity deployments. It combines flexible Intel processor options with six Intel Gigabit LAN ports, dual serial interfaces, expandable wireless connectivity, and a wide operating temperature range.
Product Gallery

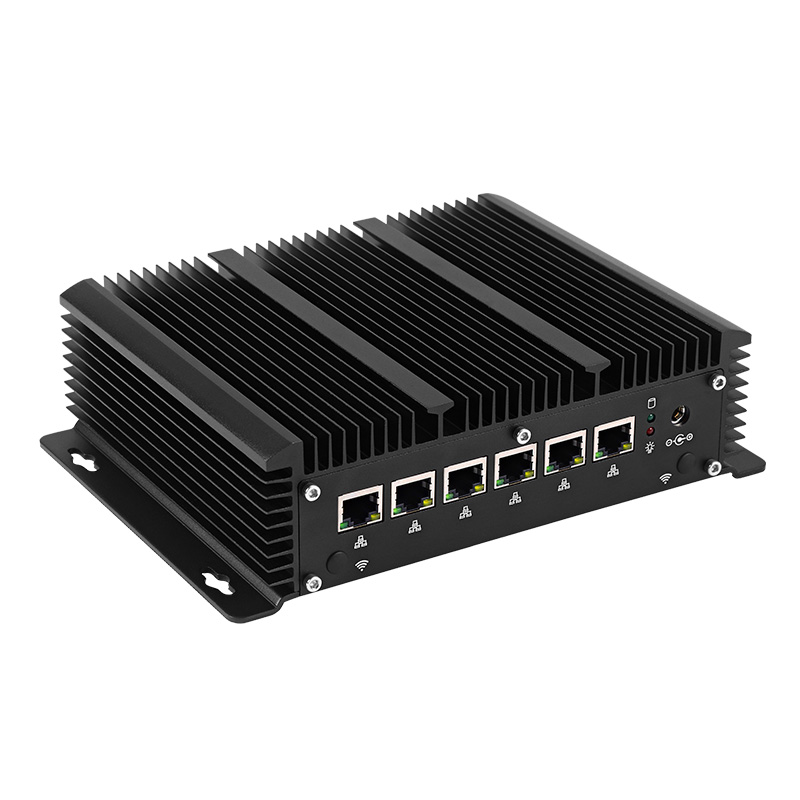

A closer look at MCIPCD3
Different product views highlight the enclosure design, interface layout, and installation details.
Technical Specifications
Industrial-grade configuration details
MCIPCD3 Specification Matrix
Brochure-based hardware parameters
Operating Range
-20°C to +70°C
Model
MCIPCD3
CPU
Optional Intel 2955U, 4th/6th/7th/8th Gen Core i3/i5/i7 CPU
Video
1 x HDMI
RAM
1 x DDR3L SO-DIMM slot, maximum 16GB
Material
Aluminum
USB
4 x USB
Power Input
12V DC input
NIC
6 x GbE RJ45 Intel i210/i211
COM
1 x DB-9 RS232, 1 x RJ45 RS232 Cisco standard
Storage
1 x mSATA, 1 x HDD/SSD
Expansion
1 x Mini-PCIe full card with SIM slot supporting 3G/4G, WiFi/Bluetooth; watchdog timer 1-255 seconds

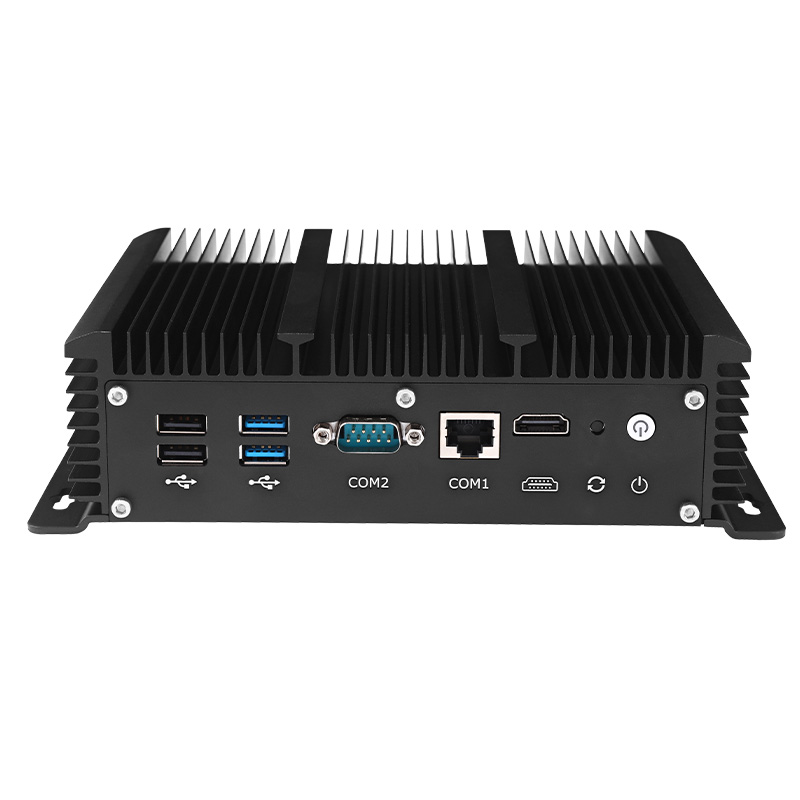

Front I/O
1 x power button, 1 x reset button, 4 x USB, 1 x HDMI, 1 x DB-9 RS232, 1 x RJ45 RS232 Cisco standard

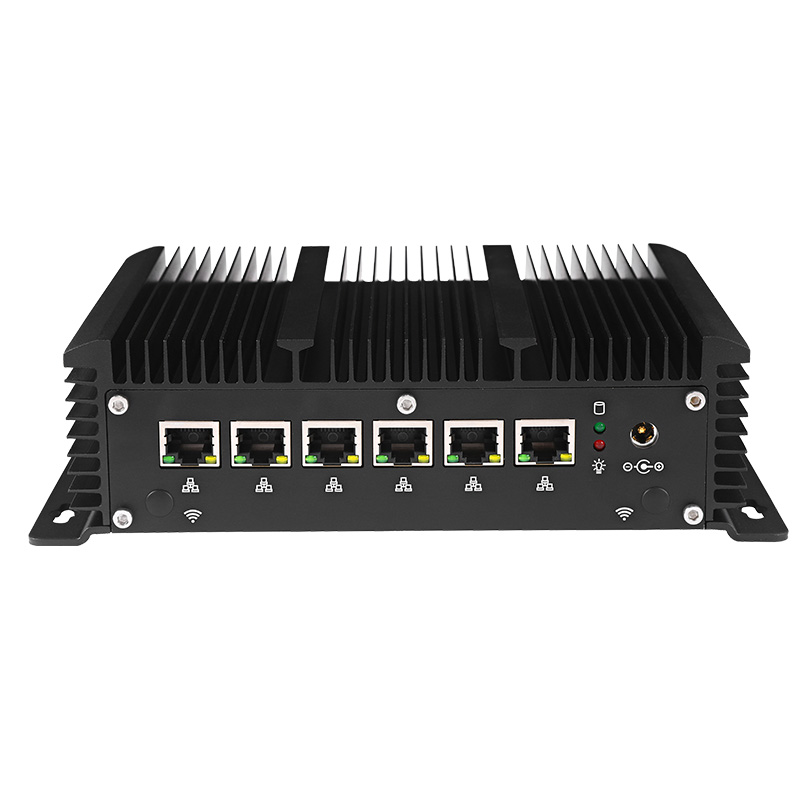

Rear I/O
6 x GbE RJ45 LAN, 1 x 12V DC power input, 2 x antenna connectors, 1 x power LED, 1 x HDD LED
System
Windows 7/8/10, Linux
Working Environment
Working temperature: -20°C to +70°C; storage temperature: -30°C to +70°C; storage humidity: 95% @40°C, non-condensing
Size
209 x 150 x 57 mm
Weight
1.35 kg
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPCD3 combines six Intel Gigabit LAN ports, flexible Intel processor choices, legacy serial connectivity, wireless expansion, and a rugged aluminum enclosure for network security and industrial edge deployments.
Six Intel Gigabit LAN Ports
Six Intel i210/i211 network interfaces support routing, firewall, gateway, and network segmentation workloads.
Flexible Intel Platform
Multiple Intel processor options help balance performance, cost, and project lifecycle requirements.
Wide Temperature Operation
Designed for reliable operation from -20°C to +70°C in demanding edge environments.

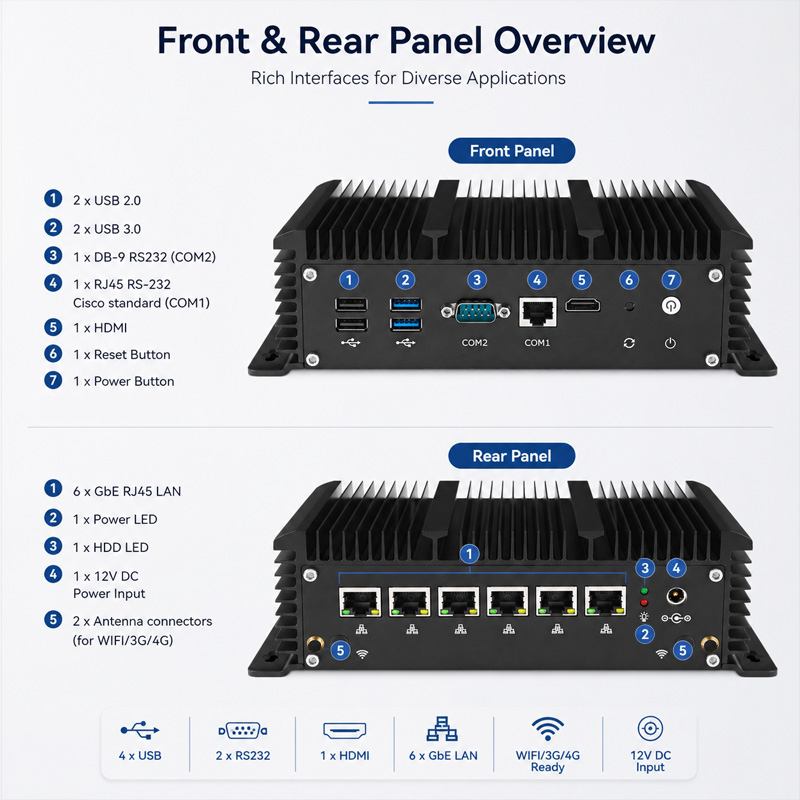

Front and rear panel overview
The illustrated interface map identifies USB, HDMI, dual serial ports, six Gigabit LAN ports, reset and power controls, status LEDs, antenna connectors, and 12V DC input.

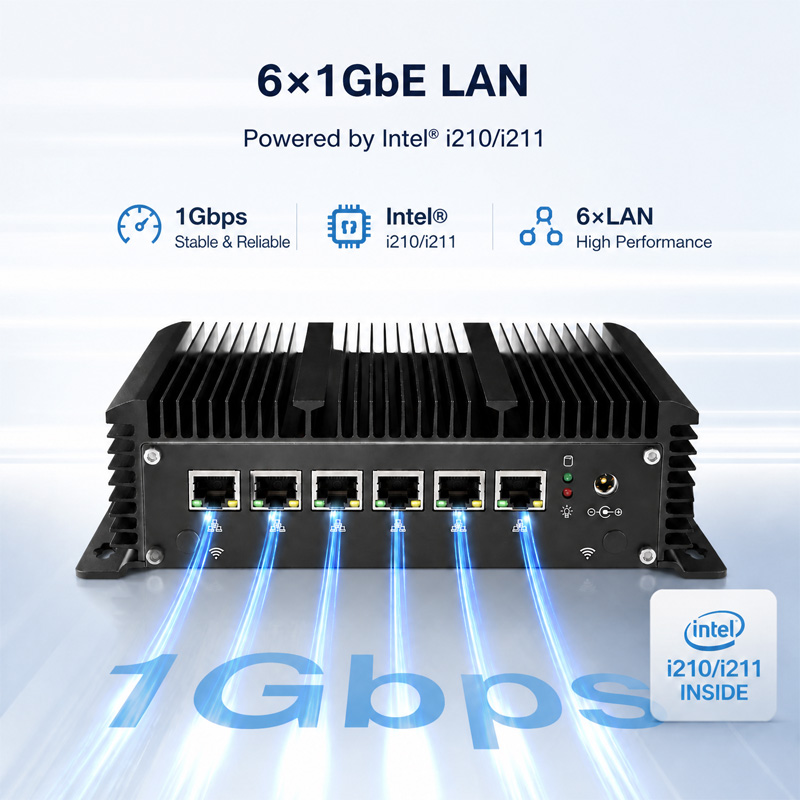

Six Intel Gigabit LAN ports
Six 1GbE interfaces powered by Intel i210/i211 controllers provide stable, high-density connectivity for routing, firewall, and network segmentation workloads.
